Shimano EC-EN100 Di2 Charger - For BT-DN320 Battery | Technical Details and Comprehensive Description

---

🚀 Product Description and Purpose: The Lifeline of Your Electronic Transmission System

The Shimano EC-EN100 Charger is compatible with Shimano's leading electronic shifting systems. Di2 (Digital Integrated Intelligence) developed for, wireless BT-DN320 battery This is a dedicated adapter designed for charging. This compact and smart charger ensures uninterrupted and flawless gear performance by allowing you to safely and efficiently replenish your Di2 system's power between rides. Thanks to the included USB-C cable, it can be powered by any smartphone charger adapter or USB port, making it extremely practical for use at home, in the office, or while traveling.

---

🔑 Key Features and Advantages – Why EC-EN100?

✔ Fully compatible with Shimano Di2 systems: Especially XTR Di2 , Dura-Ace Di2 , Ultegra Di2 And 105 Di2 used in groups such as BT-DN320 battery model It is manufactured specifically for this purpose.

✔ Compact and Portable Design: Its small size (54x35x25 mm) and lightweight design (52g) make it easy to carry in a bike bag, pocket, or drawer. It's ideal for taking with you on your travels.

✔ Smart and Battery-Friendly Charging Technology: Its intelligent charge management system charges the lithium-ion battery under optimal conditions. This extends battery life and minimizes the risk of overcharging/overheating.

✔ Universal USB-C Connector: It works with a standard USB-C cable. It can be connected to any USB power source (laptop, power bank, wall charger). It also doesn't require a separate charging adapter.

✔ Ease of Use: It works on a plug-and-play principle. Simply plug the battery into the charger and connect the USB cable to a power source.

---

⚙️ Detailed Analysis of Technical Specifications

---

📦 Package Included

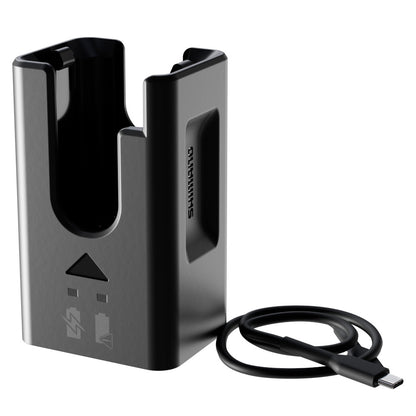

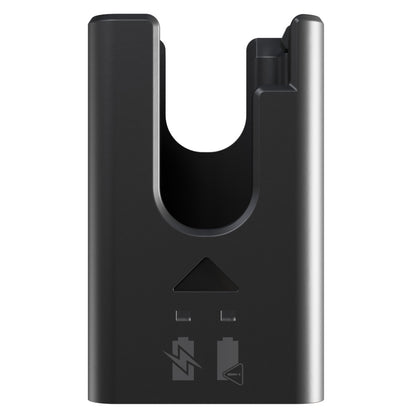

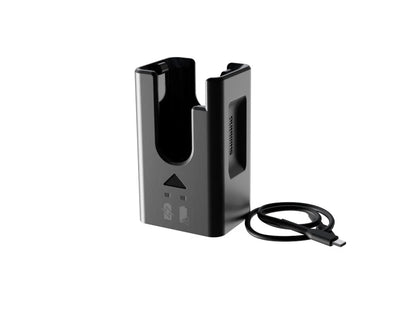

• 1 x Shimano EC-EN100 Main Charging Unit

• 1 x USB-C Charging Cable (To connect the charger to the power source)

Important Note: Inside the package The BT-DN320 battery OR any wall charger adapter is not included. To charge the battery, you will need to use the USB-C cable included in the package and any USB wall charger adapter you have at home (like old phone chargers) or a computer's USB port.

---

🔋 User Manual and Charging Tips

1. Establish the connection: To the output port of the EC-EN100 charger, BT-DN320 battery Then, connect one end of the USB-C cable to the charger and the other end to a... USB power supply Plug it in (for example, a wall charger adapter, power bank, or computer USB port).

2. Start the charging process: Charging will begin automatically once a connection is established. There is no LED indicator light on the device. There isn't . To check the charge level, the battery can be checked while on the bike or Shimano E-Tube You need to check the battery level through the app.

3. Charging Time: The charging time for a completely depleted BT-DN320 battery depends on the power source used. approximately 1.5 - 2 hours It is around [number] in the vicinity.

4. After Charging: Once charging is complete, you can remove the battery from the charger. Thanks to intelligent charging management, leaving the battery plugged in for an extended period (e.g., overnight) is usually not a problem, but it's best practice to disconnect after charging is finished.

---

⚠️ Important Warnings and Maintenance Recommendations

• For BT-DN320 only: This charger is compatible with Di2 batteries of different voltages, such as the older BT-DN110 model. It should absolutely not be used. Only BT-DN320 The model charges the battery.

• Use a quality power supply: Avoid using USB charging adapters with unstable voltage output, or those that are of poor quality or damaged. This can damage both the charger and your valuable Di2 battery.

• Avoid Extreme Temperatures: Perform the charging process at room temperature, away from direct sunlight and humidity.

• Battery Life: A BT-DN320 battery, in typical use (depending on temperature and frequency of charging cycles) approximately 1000-2000 km The battery level can fluctuate. Regularly checking the battery level via the Shimano E-Tube app and charging it before it drops below 20% is the best practice for battery health.

---

🏆 Conclusion: For Whom is this a Necessary Accessory?

The Shimano EC-EN100 Charger is an indispensable aid for owners of the following bicycles and equipment:

• Shimano Di2 Electronic Shifting System any kind road bike (e.g., SCOTT Addict 20/50, Foil RC) or mountain bike (e.g., users of high-end XTR Di2 equipped models).

• For racers and frequent performance cyclists , for uninterrupted training and racing.

• Long-distance riders (Gran Fondo, bikepacking) who want to carry a spare charging option with them.

• Tech enthusiasts and those who do their own bike maintenance , wanting to ensure that their Di2 systems function properly.

This charger, Shimano's "wireless, precise and robust" It is an integral part of the Di2 experience, as he describes it. It ensures that your high-tech gear system, in which you've invested, is always ready and smooth. With its simplicity, portability, and reliability, it's an essential piece of equipment that every driver switching to electronic gear should have in their gearshift kit.
