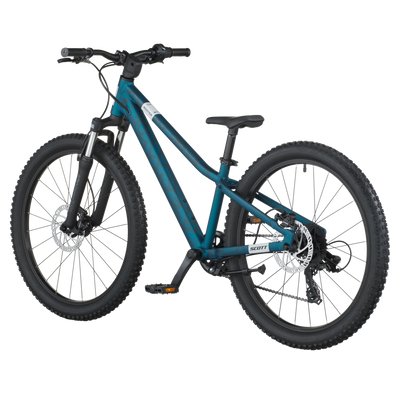

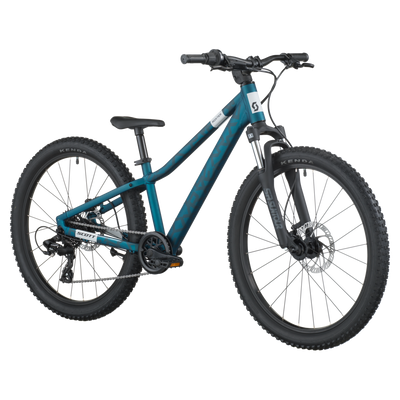

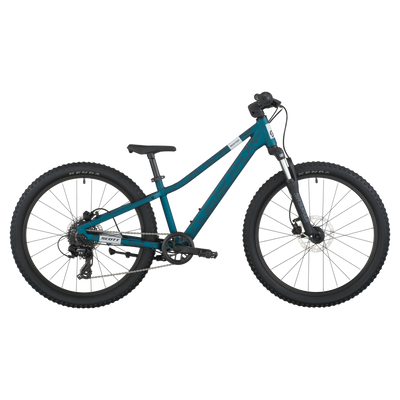

SCOTT Roxter 400 Bike Model: 425206

---

🚀 Product Character: The First True Trail Partner for Young Riders

The SCOTT Roxter 400 (Model: 425206) is for those who love to push their limits and are ready to leave their mark on local trails. 125 cm and above It is designed for young "shredders" (determined riders) of a certain height. Loch Green (Loch Green) color and One Size With its geometry and 24" wheel size, this bike inspires confidence in young riders with its durable construction and fun-focused design. It's the perfect starting point for speeding through forest trails, jumping over small ramps, and confidently navigating rough terrain. It fully embraces the motto "The bike that will shake up the local forest."

---

🔑 Key Features

✔ Target Audience: Children 125 cm and taller – An excellent candidate for a "first true mountain bike," appealing to younger children compared to the higher-end Roxter 600 (135 cm+).

✔ 24" Rims – The most ideal and common wheel size for children between 125-140 cm. Provides excellent balance, control and maneuverability.

✔ Weighing only 10.8 KG / 23.81 LBS – Extremely lightweight for its class! This lightness allows the child to easily lift and control the bike, and expend less energy when climbing hills.

✔ 8-Speed ​​Gearbox – Simple and reliable 8-speed system. Large Cassette (11-34T) Thanks to this, it is easier to cope with the steep slopes on the tracks.

✔ "A Bicycle That Will Shake Up the Local Forest" – Designed for young adventurers who want to leave the asphalt and step onto dirt roads and trails.

✔ Easy-to-Use Hydraulic Disc Brakes – The Tektro HD-M276 hydraulic disc brake set delivers powerful and consistent braking performance, even in wet and muddy conditions. Short reach brake levers designed for small hands. Security is a top priority.

✔ Suspension for Comfort – SR Suntour XCT-JR front fork with 50mm travel, softer spring setup specifically designed for children with light weight It is equipped with a suspension system that softens the impact of small stones and roots on the road, enhancing driving pleasure and control.

✔ Traction without limits – Wide profile Kenda Karma2 tires (24x2.2") provide excellent grip and durability on both asphalt and dirt/mud surfaces.

✔ Cockpit Specifically Designed for Bicycle Size – Designed for children's anatomy, with a narrow (560mm) and slightly elevated (20mm rise) handlebar, a 50mm short stem, and slim grips (Syncros Grips Kids). maximum control and comfort has been provided.

✔ Additional Equipment: Internal foldable support (kickstand) And handlebar stem protector It offers practical and safe use.

---

⚙️ Technical Specifications

Frame

• Model & Material: KIDS24 disc , Alloy 6061 Custom Tubing – a compact and extremely durable aluminum children's frame specifically designed for 24" wheels.

• Detail: Semi-internal cable routing (Semi Internal CBR), SCOTT patented rear dropout and disc brake mounting (PM).

Suspension (Fork)

• Model: SR Suntour XCT-JR, 24"

• Travel Distance: 50mm – Ideal for small bodies and light weights, offering a controlled cruising range.

• Critical Detail: Softer spring setup for children . This eliminates the problem of a standard adult fork not working properly with a child's weight, ensuring efficient and comfortable suspension operation.

Gear Group Set (Drivetrain)

• Rear Derailleur: Shimano Tourney RD-TX800, 8-speed – A simple, durable, and easy-to-maintain entry-level component.

• Gear Shifters: Shimano SL-RV400-8R, Revo Shifter (Rotary/Grip Shift) – An extremely intuitive and easy-to-use system for children who have difficulty with or prefer not to use the trigger lever.

• Mirror (Crankset): Prowheel, Aluminum, 30T gears, 127mm arm length – Specially designed short handlebars for a perfect fit on the pedaling circle for young children.

• Cassette: SunRace CSM55, 8-speed, 11-34T – The large 34T gear provides a great help to young riders on climbs.

• Chain: KMC Z8.3, 8-speed.

• Bottom Bracket: Feimin, BB68, cartridge tip.

Braking System

• System: Tektro HD-M276 Hydraulic Disc Brake Set – It comes as a complete set, so there will be no compatibility issues.

• Rotors: 160mm front and rear – More than enough braking power and heat dissipation for a small bike and rider.

• Important Detail: Short-reach brake levers ensure that even small hands can fully grip and effectively apply the brakes.

Cockpit and Controls

• Handlebar: LEADTEC Kids riser bar, 560mm width, 20mm rise – Optimized for control and a comfortable riding position.

• Handlebar Stem: LEADTEC Alloy, 50mm, +10° angle.

• Handlebar Covers (Grips): Syncros Grips Kids 100/80 – Thin, non-slip handles specially designed for children's hands.

• Sele & Sele Mail: Syncros KIDS III saddle, 27.2mm diameter integrated saddle post It comes with a saddlebag. This makes saddle height adjustment easy and provides a lightweight design.

Wheels and Tires

• Rims: Aluminum, anodized black, compatible with disc brakes.

• Hubs: Formula – 5x100mm front, 5x135mm rear. 24 holes (24H) and 6-bolt disc mount.

• Tires: Kenda K1237 Karma2 – 24x2.2", 30TPI. With its all-round tread pattern, it offers both a quiet ride on asphalt and good traction on dirt roads.

Other Components and Weight

• Pedals: Child-friendly pedal, with reflectors.

• Extras: Folding support (Kickstand) And handlebar stem protector standard income.

• Approximate Weight: 10.8 kg / 23.81 lbs – Superior lightness among 24" mountain bikes.

• Maximum System Weight: 70 kg – The total weight of the bicycle, rider, and equipment.

---

📐 Geometry Table and Driving Characteristics Analysis (One Size - 24")

---

⚠️ Important Warnings and Terms of Use

• Intended Use: This bike is suitable for light trails, forest roads, Cross-country (XC) Designed for typical driving and city use. Not suitable for steep descents or large jumps.

• Maximum Weight: 70 kg The system weight limit must absolutely not be exceeded.

• Right to Make Technical Changes: The manufacturer reserves the right to change specifications without prior notice.

• Assembly and Safety: Professional assembly is required. The saddle height should be adjusted so that the child's feet are flat on the ground while their legs are slightly bent. Helmet use is mandatory; knee and elbow pads are strongly recommended.

---

🏆 Conclusion: According to whom?

The SCOTT Roxter 400 (Model 425206) is for those who want more than just a children's bike. This is the ideal "first serious mountain bike" for young riders between 125-140 cm tall . Its lightweight design, child-specific suspension, powerful hydraulic brakes, and reassuringly low geometry promise parents peace of mind and children the freedom to explore and enjoy limitless fun. The question "Ready to take your riding to the next level?" becomes a reality with this bike. It's the perfect vehicle to take young riders off the asphalt and onto trails, opening the door to a world of adventure.
