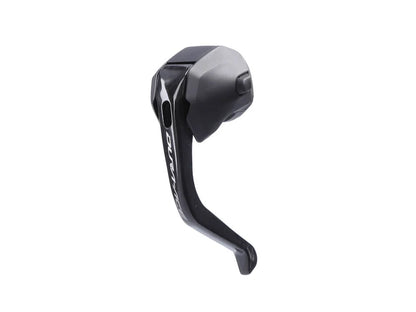

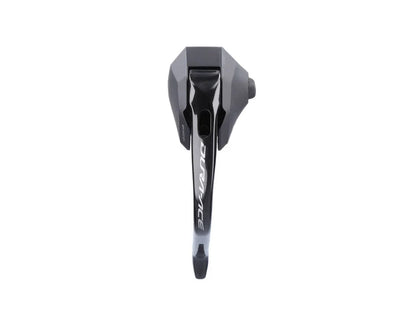

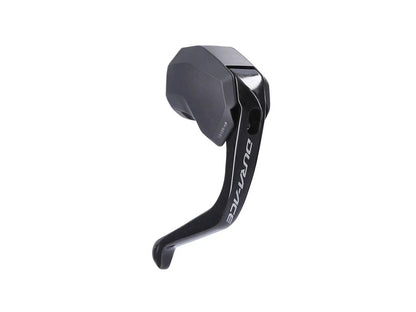

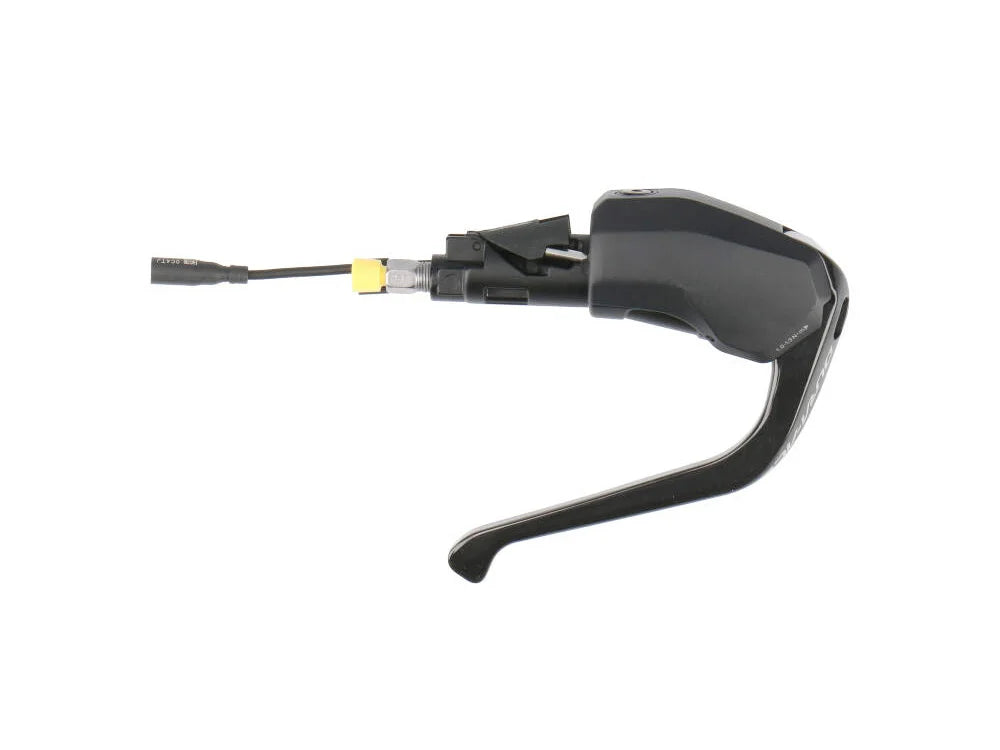

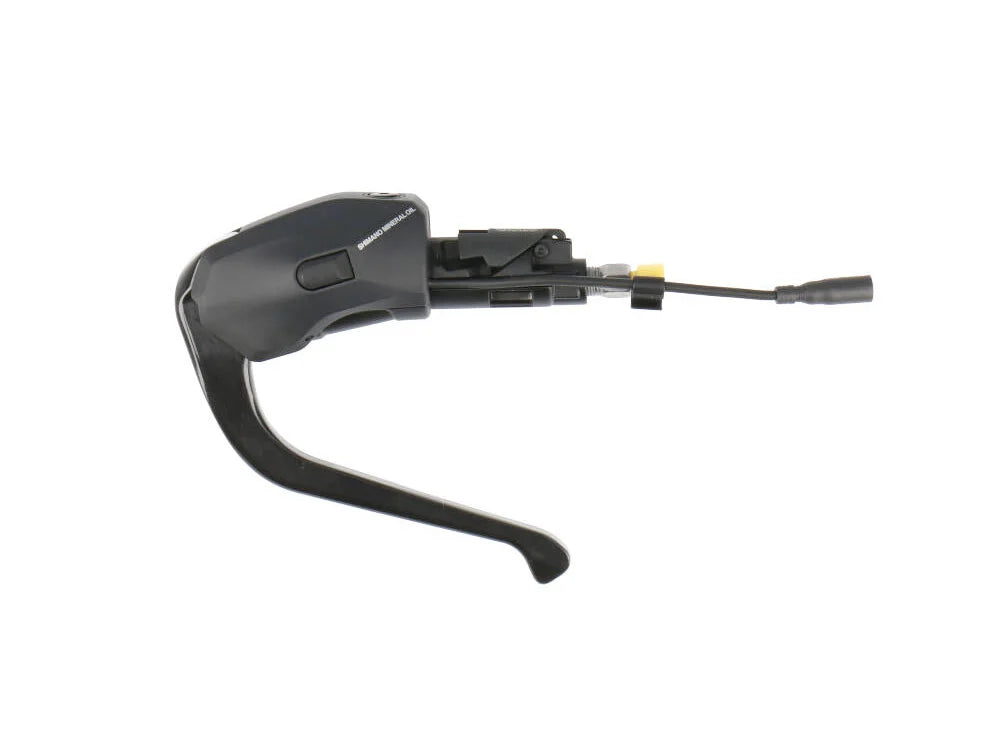

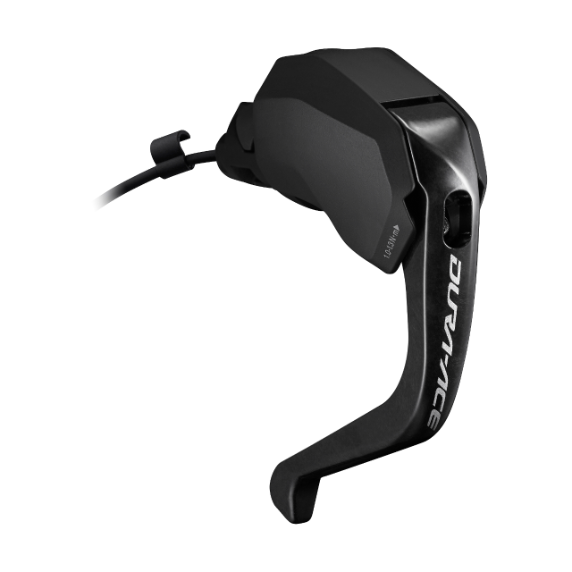

Shimano Dura-Ace Di2 ST-R9180 TT Hydraulic Disc Shifter/Brake Lever – Single (Right or Left)

Superior aerodynamics, electronic precision, and hydraulic braking power for triathlon and time trial bikes.

Disc brakes have become standard in time trials (TT) and triathlons. Their higher braking power, more precise modulation, and the confidence they provide on challenging stages offer a significant advantage in races where seconds matter. The Shimano Dura-Ace Di2 ST-R9180 combines this superior braking performance with electronic shifting technology, integrating it into your cockpit with a fully aerodynamic design.

Thanks to its slim and fluid design, the brake lines and Di2 cables are completely hidden within the handlebars, reducing friction and giving the cockpit a clean look. Unlike mechanical systems, the integrated Di2 buttons allow for gear changes both at the aerobar ends and in the brake lever position (in Synchronized Shift mode). Rapid and quick gear changes are also possible with Multishift support.

The ST-R9180 is compatible with both 11-speed Dura-Ace 9170 and 12-speed Dura-Ace 9270 Di2 sets. The EW-AD305 E-Tube cable adapter is required for use with 12-speed sets.

---

Features and Advantages

🚴 Specially designed for triathlon/time runners.

• Aerodynamic, ultra-thin body

• Fully integrated cable routing through the handlebars.

• Clean cockpit view

• Perfectly compatible with TT handlebars (DH Bar – left/right)

⚡ Di2 Electronic Transmission Technology

• Flawless gear shifting with a single touch.

• Synchronized Shift and Auto-Trim support

• Gear shifting via brake lever and aerobar.

• 1 programmable Shift Button (per lever)

• Multishift can be selected on/off.

• It works flawlessly even under challenging conditions.

🛑 Hydraulic Disc Brake Performance

• Hydraulic system that operates with mineral oil.

• Compatible with BR-R9170 and BR-R9270 calipers.

• High braking power and precise dosing.

• Greater confidence in technical corners and at high speeds.

🏁 Advanced Control and Ergonomics

• Carbon composite lightweight body

• Arm reach adjustment

• Compatible with handlebar inner diameters of 19.0–22.5 mm.

• Firm grip and optimum power transfer.

---

Technical Specifications

Usage: Triathlon / TT
Group: Shimano Dura-Ace Di2
Model: ST-R9180 (left or right)
Type: Dual Control Lever – Electronic gear shift + hydraulic brake
Material: Carbon Composite

Gear Compatibility:

• 2×11 (9170 Di2)

• 2×12 (with 9270 Di2 – EW-AD305 adapter)

Technologies:

• Synchronized Shifting

• Auto-Trim

• E-Tube

• SLR-Evo

• SEIS (Shimano Electronic Intelligent System)

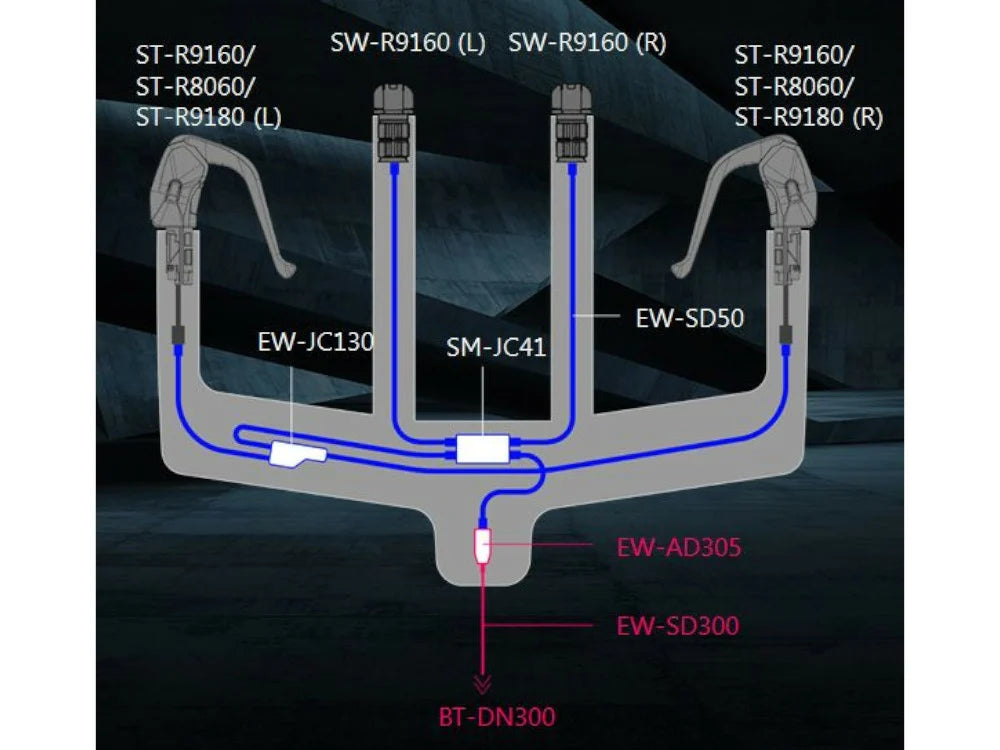

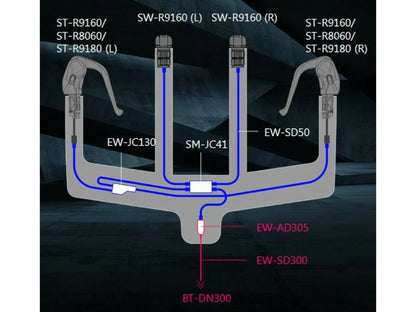

Ports:

• 1 × EW-SD50 (adaptable to EW-AD305 and EW-SD300)

Brake Type: Hydraulic Disc Brake
Brake Media: Mineral oil
Compatible Calipers: BR-R9170, BR-R9270
Arm Reach Adjustment: Yes
Handlebar Mounting Inner Diameter: 19.0 – 22.5 mm
Color: Black / Anthracite

Weight (Manufacturer): 99 g
Weight (Actual Measurement): 107 g

---

Technology Description

🔧 SEIS – Shimano Electronic Intelligent System

• Electronic version of the SIS indexed mechanical gear system.

• Tested in all conditions including rain, mud, and cold.

• Quick and effortless gear changes with a single touch.

• Electronic signal transmission unaffected by cable problems.

• Same ergonomics as mechanical dual control levers.

🔌 E-Tube Project

• Plug & Play connectivity

• Stainless steel, freeze-proof, flexible cable system.

• High data transfer

• Software-updatable hardware.

---

Manufacturer and Model Information

Model: ST-R9180
Manufacturer Number (Right): I-STR9180R
Gear Compatibility: 11V / 12V

---

Box Contents

• 1 × Shimano Dura-Ace ST-R9180 Di2 TT Hydraulic Shift/Brake Lever (Left or Right – choice included)

• 1 × Shimano Shift Cable
